Made in China

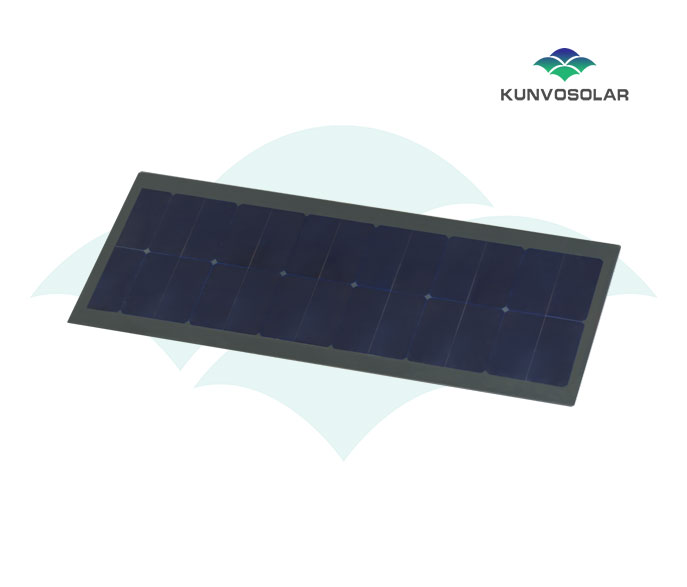

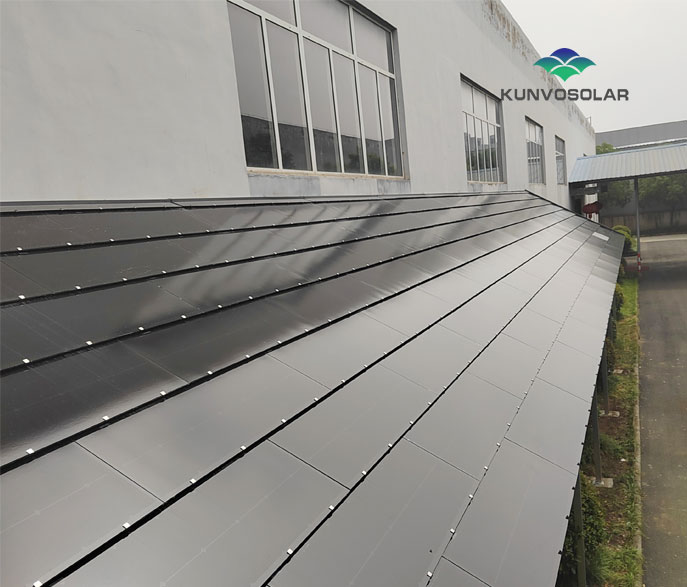

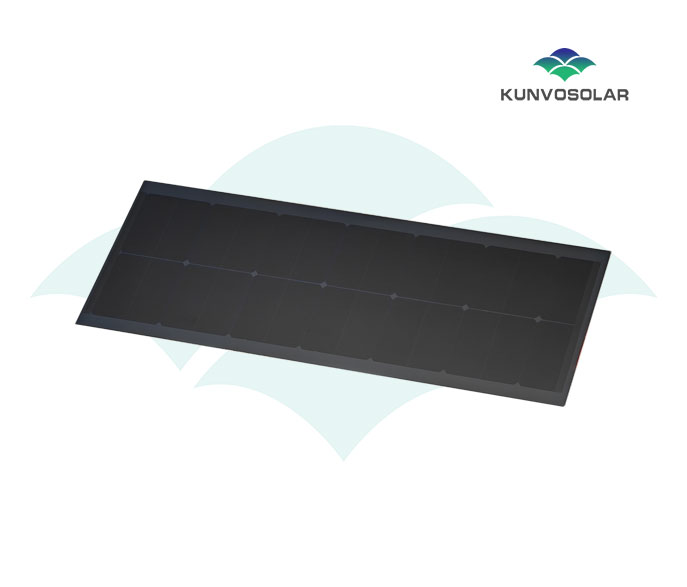

Bezel-less solar tiles, wide range of applications, easy installation
| title | Parameters | title | Parameters |
|---|---|---|---|
| Dimensions | 1127 mm X 400 mm | Cell type | Mono c-Si |
| Effective size | 1127 mm X 370 mm | Rated Max.power (Pmax) | 78W±3% |
| Weight per module | 7.53kg | Current at max. power (Impp) | 10.45A |
| Weight per m² | 18.07kg | Voltage at max. power (Vmpp) | 7.47V |
| Front cover | 3.2 mm tempered glass | Short circuit current (Isc) | 11.07A±4% |
| Back rail | 3.2 mm tempered glass | Open circuit voltage (Voc) | 8.95V±3% |
| Junction box protection class | MC4 IP68 | Max. System voltage | 1500V DC |
| Cable cross section | 4 mm² | Operation temperature | -40℃ ~ 85℃ |
| Wind / Snow Load | 2400Pa/5400Pa | Tolerance（Tol） | 0/+5W |
| Protection Class | Class II |
