Made in China

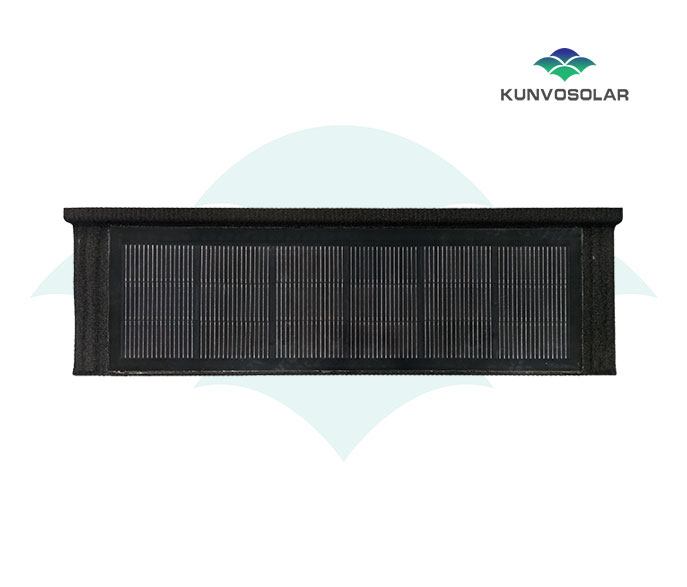

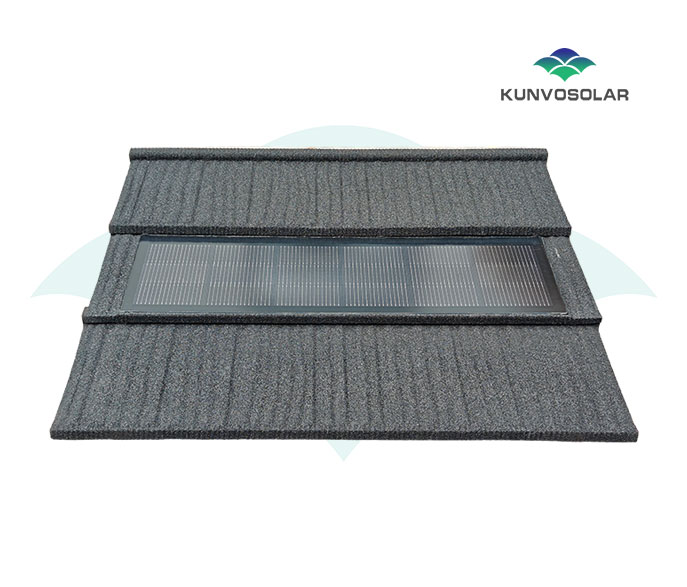

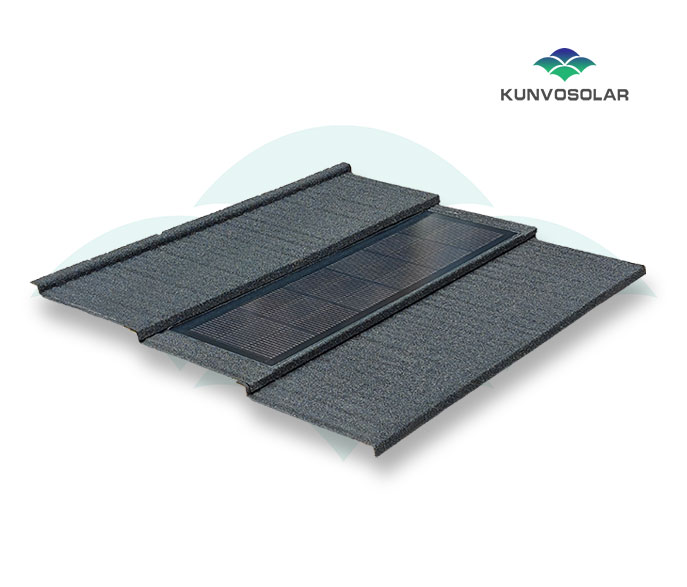

Color stone metal solar tiles, lightweight and high strength, weather-resistant and corrosion-resistant, easy to install
| title | Parameters | title | Parameters |
|---|---|---|---|
| Dimensions | 1350 mm X 420 mm | Cell type | Mono c-Si |
| Effective size | 1280 mm X 370 mm | Rated Max.power (Pmax) | 70W±3% |
| Weight per module | 6.65kg | Current at max. power (Impp) | 6.34A |
| Weight per m² | 14.04kg | Voltage at max. power (Vmpp) | 11.05V |
| Front cover | 3.2 mm tempered glass | Short circuit current (Isc) | 6.89A±4% |
| Back rail | 0.4 mm coated steel | Open circuit voltage (Voc) | 12.87V±3% |
| Junction box protection class | MC4 IP68 | Max. System voltage | 1500V DC |
| Cable cross section | 4 mm² | Operation temperature | -40℃ ~ 85℃ |
| Wind / Snow Load | 2400Pa/5400Pa | Tolerance（Tol） | 0/+5W |
| Protection Class | Class II |
