Made in China

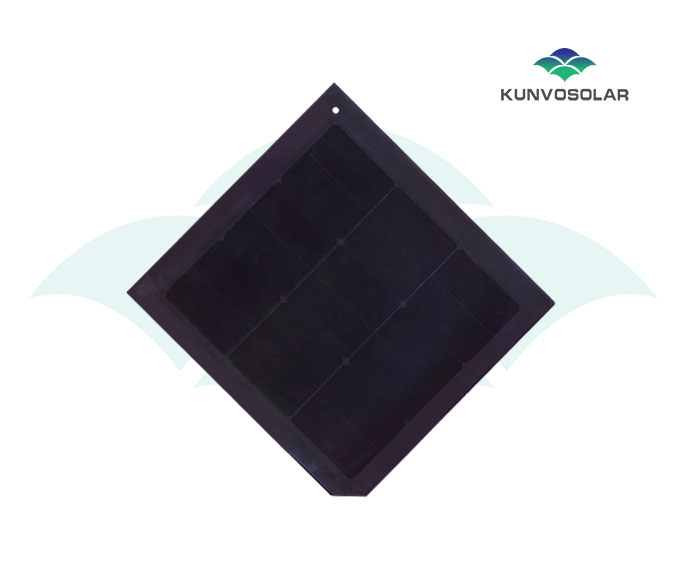

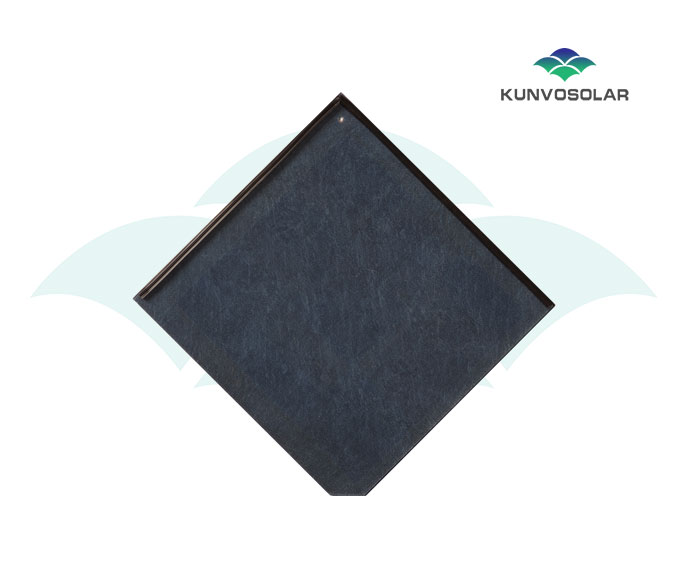

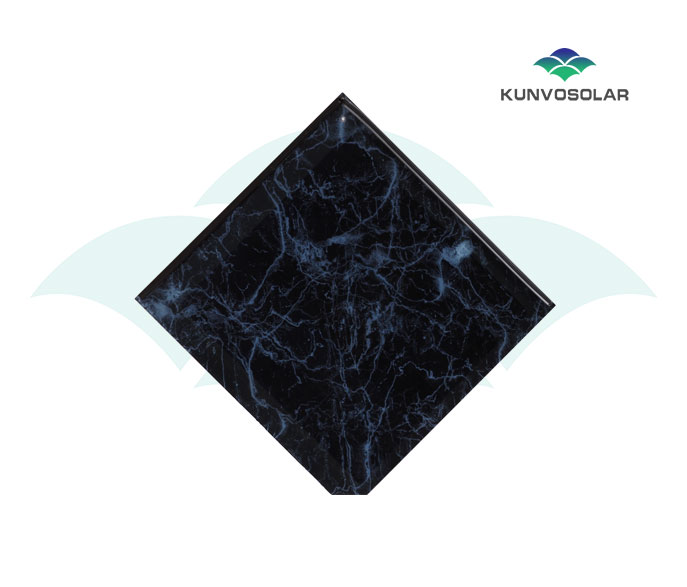

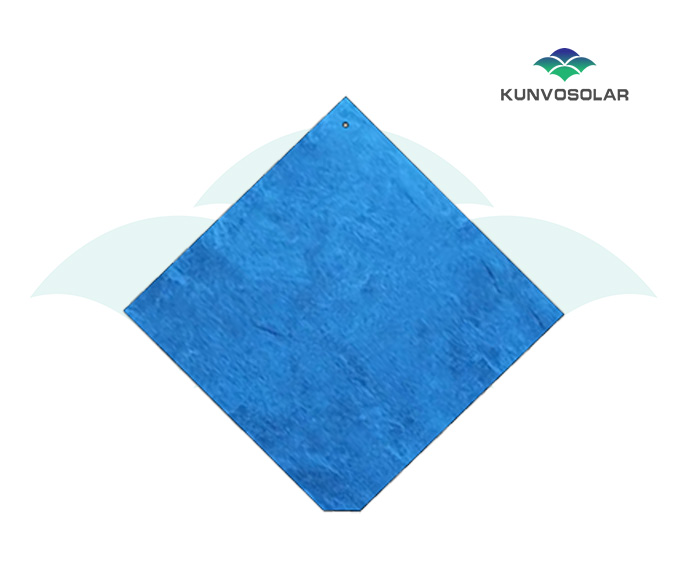

Diamond-shaped solar tiles, beautiful and generous, with a sense of hierarchy
| title | Parameters | title | Parameters |
|---|---|---|---|
| Dimensions | 600 mm X 600 mm | Cell type | Mono c-Si |
| Effective size | 576 mm X 576 mm | Rated Max.power (Pmax) | 55W±3% |
| Weight per module | 6kg | Current at max. power (Impp) | 5.12A |
| Weight per m² | 18kg | Voltage at max. power (Vmpp) | 10.75V |
| Front cover | 3.2 mm tempered glass | Short circuit current (Isc) | 5.55A±4% |
| Back rail | 3.2 mm tempered glass | Open circuit voltage (Voc) | 12.55V±3% |
| Junction box protection class | MC4 IP68 | Max. System voltage | 1500V DC |
| Cable cross section | 4 mm² | Operation temperature | -40℃ ~ 85℃ |
| Wind / Snow Load | 2400Pa/5400Pa | Tolerance（Tol） | 0/+5W |
| Protection Class | Class II |
